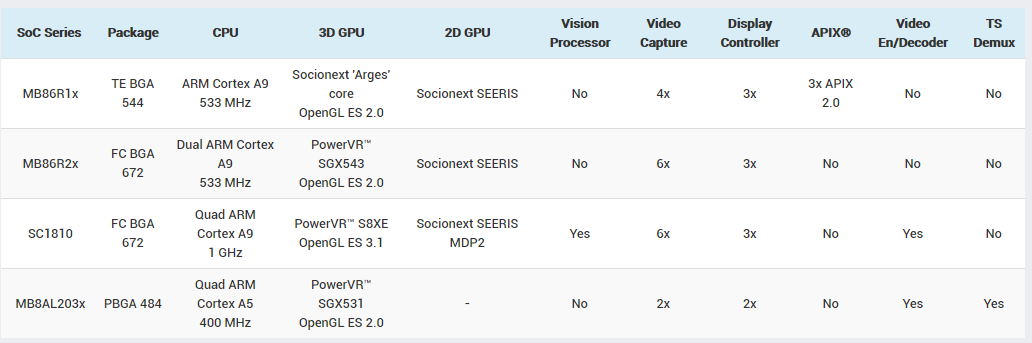

Key Features

• Single ARM® Cortex™ A9 Core

• ARM® Neon™ SIMD Engine

• 3D Engine (OpenGL® ES 2.0) ‘Ruby’

• 2D Engine SEERIS™

• DDR2-400/533/800 and DDR3-800/1066, x32 bus width, 1GB

• 3 Display controllers (RSDS, RGB, APIX2®)

• 4 Independent Video Capture Units (APIX2®)

• Standard I/O: UART, SPI, USB etc.

• Automotive I/F: CAN, MediaLB®

Product Options

• MB86R11FBH-GSE1

• MB86R12FBH-GSE1

• MB86R13FBH-GSE1

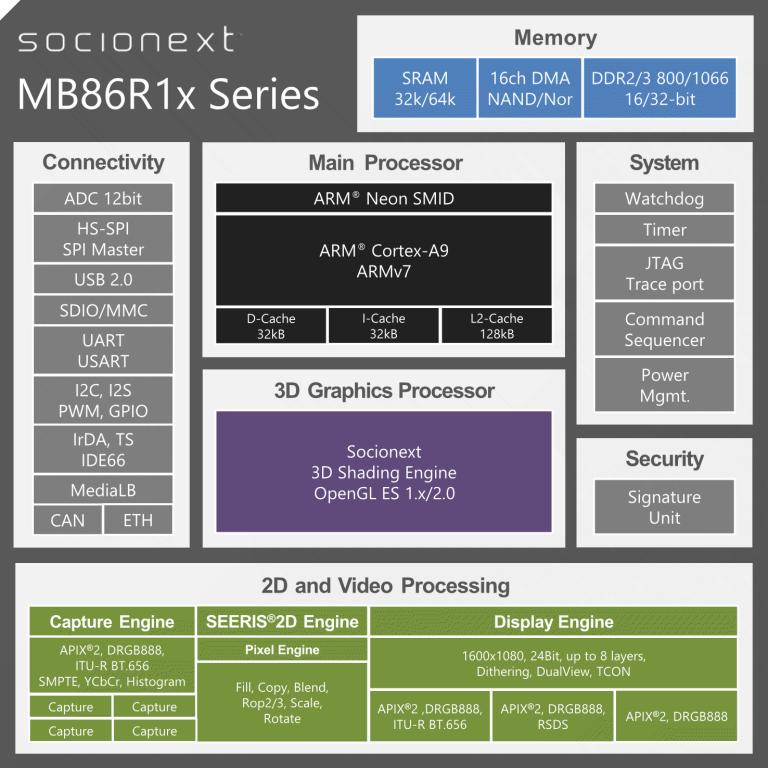

Block Diagram

Key Features

• Dual ARM® Cortex® A9 MPCore™ (2x 533MHz)

• ARM® Neon™ SIMD Engine

• 3D Engine (OpenGL® ES 2.0) ‘PowerVR™ SGX543-MP1’

• 2D Engine SEERIS™

• Warping-on-the-fly

• DDR3/3L-800/1066, x16, x32, x64 bus width

• 3 Display controllers (FPD, RGB)

• 6 Independent Video Capture Units

• Standard I/O: UART, SPI, USB, Ethernet AVB etc.

• Automotive I/F: CAN, MediaLB® (3-Pin)

Product Options

• MB86R24RBB-GSE1

Block Diagram

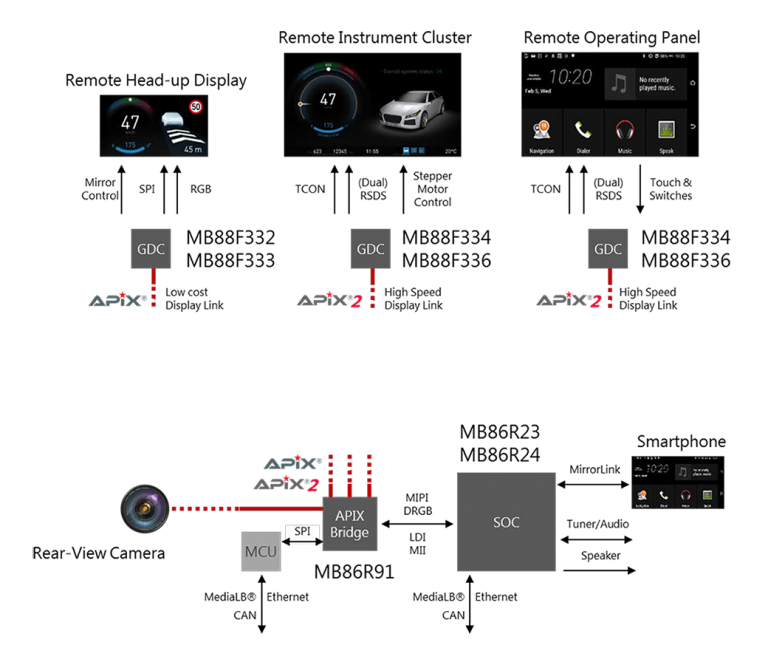

Application Examples

Source: Socionext Inc.Source: Socionext Inc.

Factsheet: MB86R2x – ARM® Core Based Processors (AD04-0052-1E May 2013)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• Quad ARM® Cortex™ A9 MPCore™

• ARM® Neon™ SIMD Engine

• 3D Engine (OpenGL® ES 3.1) ‘POWERVR 8XE

• Socionext SEERIS Capture/Graphics/Display Engines

• Socionext Vision Processor

• DDR3-1866; DDR3L-1600, 16/32/64 bus width

• 3 Independent Display controller

• 6 Independent Video Capture Units

• Multi-format Decoder Full-HD: 6x30fps or 2x60fps

• Multi-format Encoder Full-HD: 2x60fps

• Motion JPEG Decoder Full-HD 6x30fps

• Standard I/O: UART, SPI, USB, Ethernet AVB etc.

• Automotive I/F: MediaLB® (3-/6-Pin), CAN

• 28nm CMOS; FCBGA-1024; 0.8 pitch

Product Options

• AR3-134 (SD support)

• AR3-113 (HD support)

• AR3-103 (Full feature)

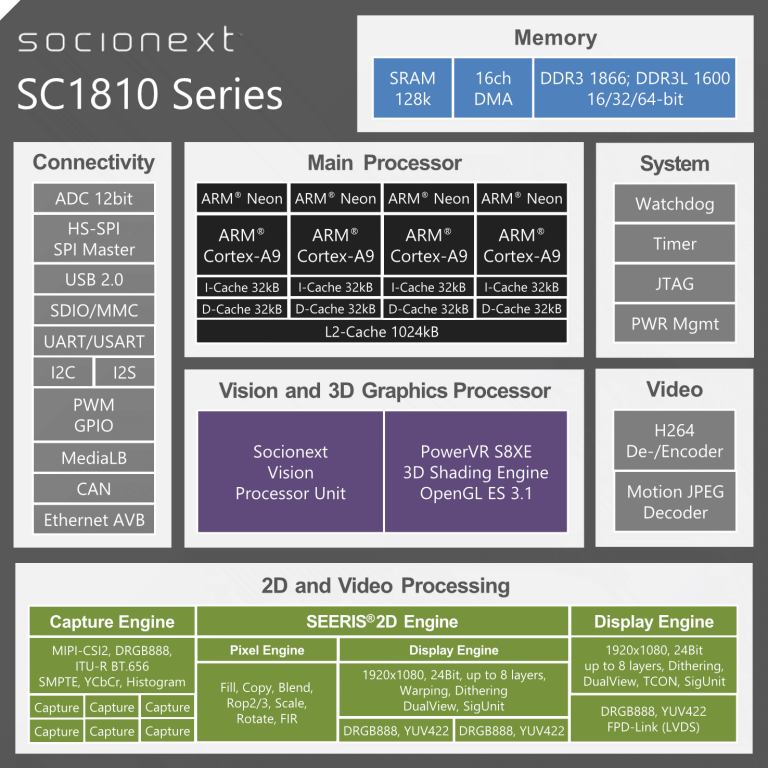

Block Diagram

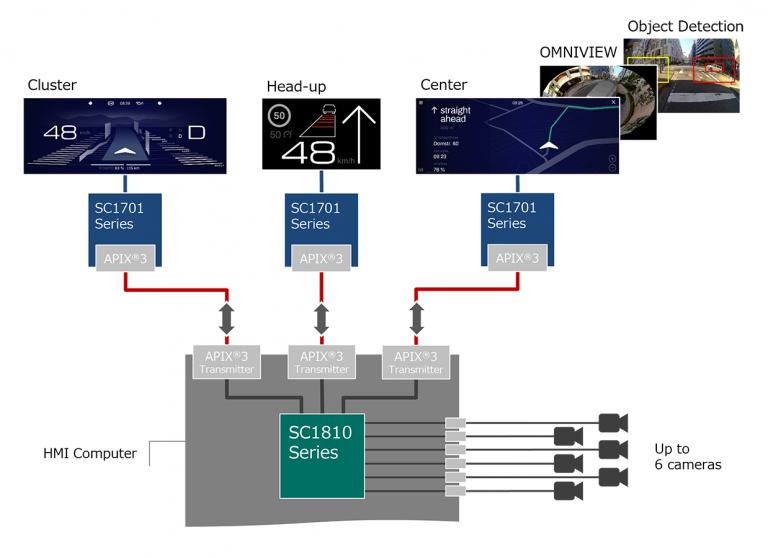

Application Example

Factsheet: SC1810x – ARM® Core Based Processors (v15 November 2018)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• Quad ARM® Cortex™ A5 MPCore ™

• ARM® Neon™ SIMD Engine

• 3D Engine (OpenGL® ES 2.0) ‘POWERVR SGX531-MP1, 2D Engine

• DDR3-1080, 2 x16, bus width

• 2 Display controller

• 2 Video Capture Units

• Multi-format HD Video Decoder (incl. H.265),

• HD Video Encoder

• 4 Audio Capture

• Standard I/O: UART, SPI, USB, Ethernet etc.

• Cipher engine with AES/DES, hash and DTCP accelerator, secure boot

• Automotive I/F: MediaLB® (3-/6-Pin)

Product Options

• MB8AL2039B MH

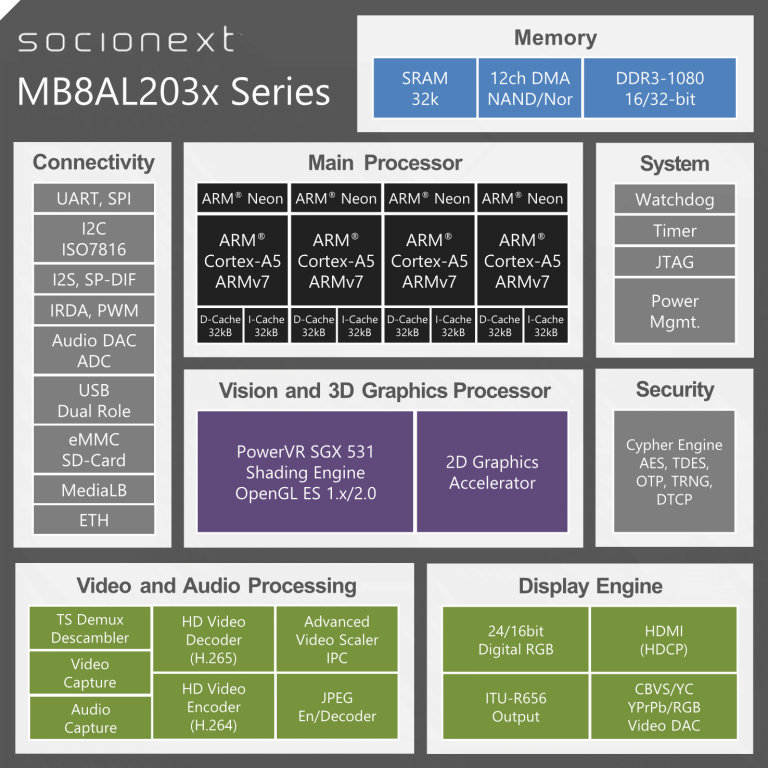

Block Diagram

Factsheet: MB8AL203x – Multi-format HD Decoder LSI (Date: 28.06.2018)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• Integrated APIX®2 Phy; Daisy-Chain support

• SEERIS™ Pixel Engine

• 4 Signature Units (ASIL B)

• Embedded 56KB NOR Flash

• Embedded 128KB SRAM

• External Serial Flash I/F

• SPI Host I/F

• I²C, I²S (via APIX), UART/SPI

• Stepper Motor Control, PPG (PWM), ADC

• Sound Generator Module

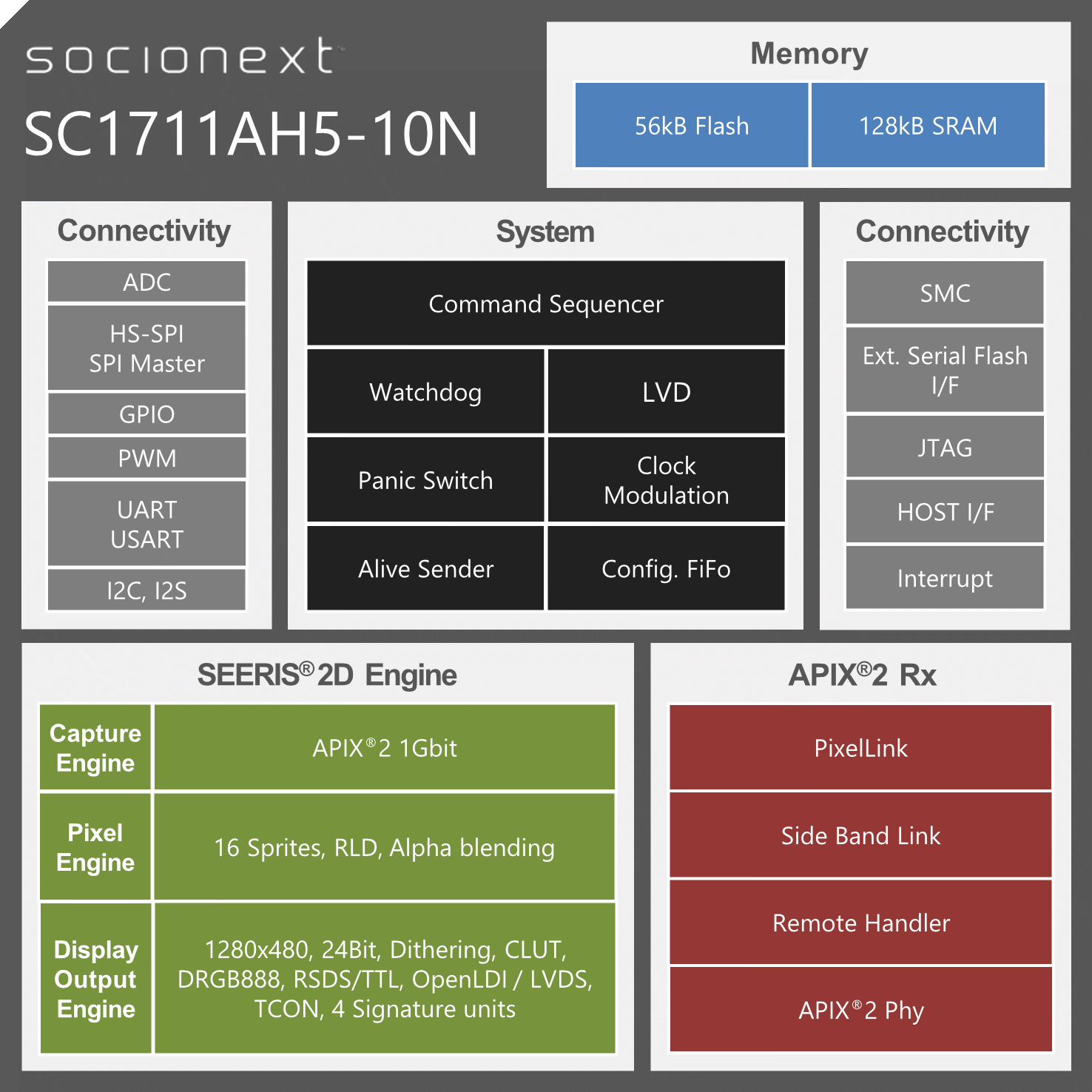

Block Diagram

Application Example

Key Features

• 4k Resolution (3840 x 2160 @ 60Hz / 30bpp)

• Socionext SEERIS™ 2D Graphics Engine

• Dual Display Controller and dual TCON integrated

• Signature Unit and Safety layer

• APIX®3 Rx up to 12 Gbps with HDCP 1.4

• Ethernet extension support through APIX®3

• VESA DSC decompression up to 3:1 ratio

• Display Output Interfaces (OpenLDI, miniLVDS, RSDS, TTL)

• Touch Controller connectivity and Audio Generator

• Wide range of peripherals for external connectivity

• Spread Spectrum Modulation to reduce EMI

• AEC-Q100 qualification

• Support for Automotive Safety and Integrity (ASIL B)

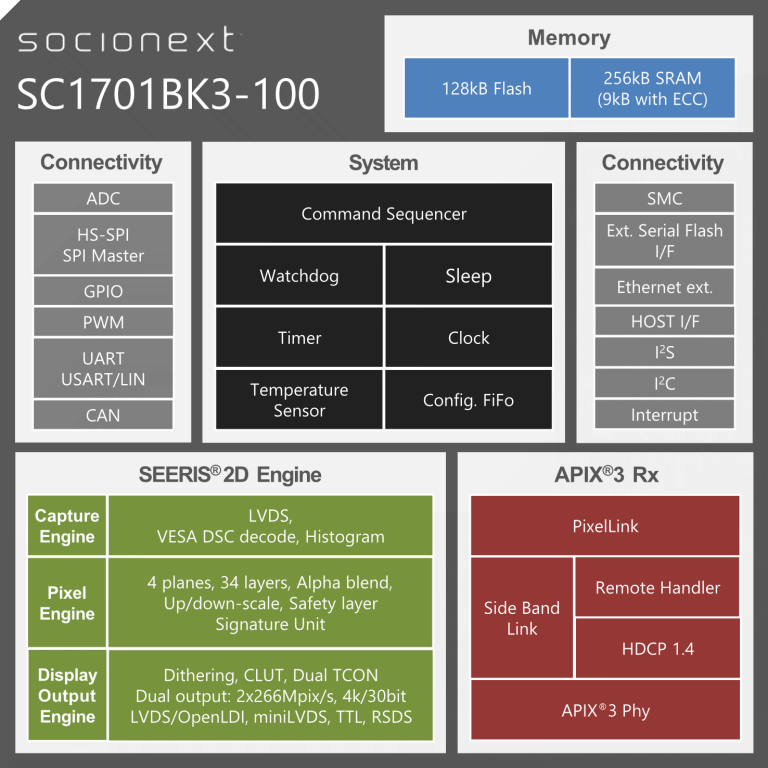

Block Diagram

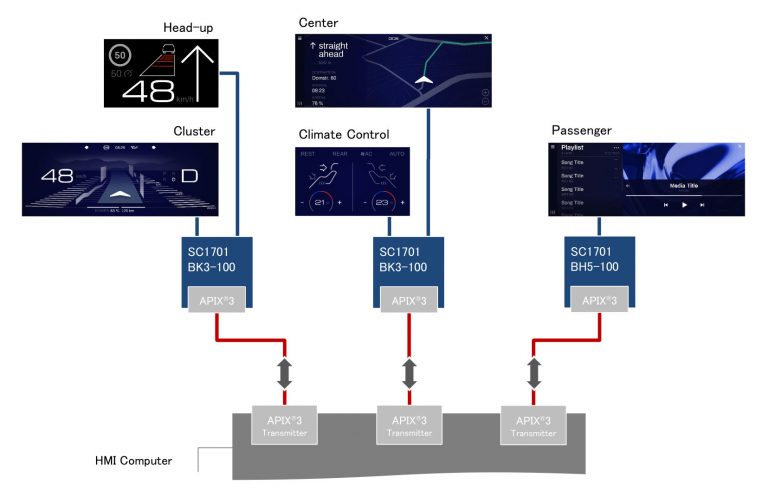

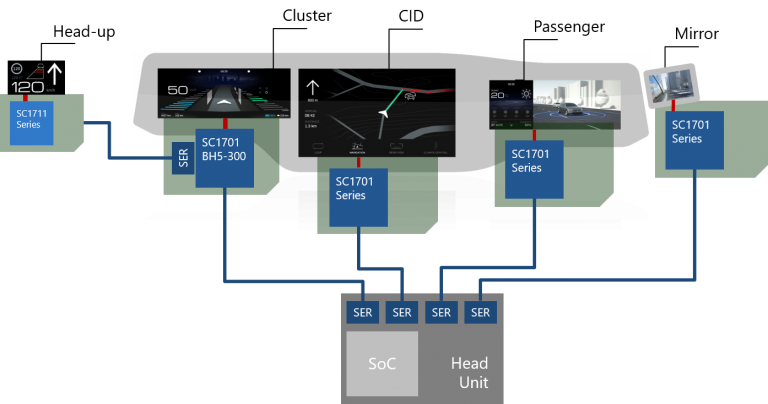

Application Example

Source: Socionext Inc.

Source: Socionext Inc.

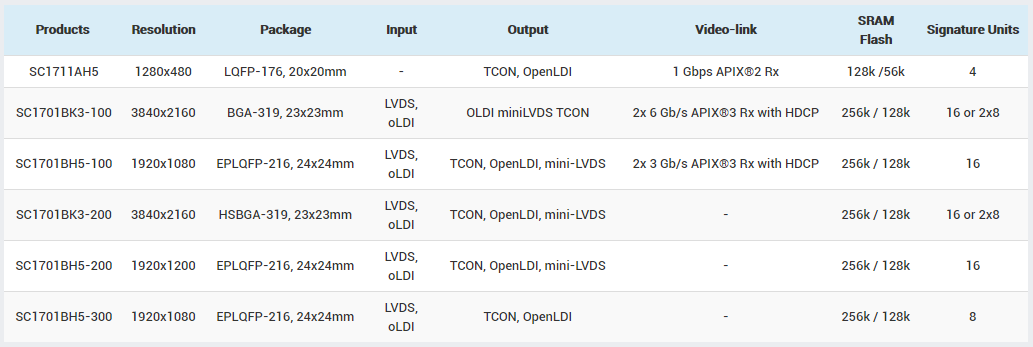

Factsheet GDC SC1711AH5 Series – SC1701BK3 Series – SC1701BH5 Series (v017)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• 2k Resolution (1920 x 1080 @ 60Hz / 30bpp)

• Socionext SEERIS™ 2D Graphics Engine

• Display Controller and TCON integrated

• Signature Unit and Safety layer

• APIX®3 Rx up to 6 Gbps with HDCP 1.4

• Ethernet extension support through APIX®3

• VESA DSC decompression up to 3:1 ratio

• Display Output Interfaces (OpenLDI, miniLVDS, RSDS, TTL)

• Touch Controller connectivity and Audio Generator

• Wide range of peripherals for external connectivity

• Spread Spectrum Modulation to reduce EMI

• AEC-Q100 qualification

• Support for Automotive Safety and Integrity (ASIL B)

Block Diagram

Application Example

Source: Socionext Inc.Factsheet GDC SC1711AH5 Series – SC1701BK3 Series – SC1701BH5 Series (v017)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• 4k Resolution (3840 x 2160 @ 60Hz / 30bpp)

• Socionext SEERIS™ 2D Graphics Engine

• Dual Display Controller and dual TCON integrated

• Signature Unit and Safety layer

• Display Output Interfaces (OpenLDI, miniLVDS, RSDS, TTL)

• Touch Controller connectivity and Audio Generator

• Wide range of peripherals for external connectivity

• Spread Spectrum Modulation to reduce EMI

• AEC-Q100 qualification

• Support for Automotive Safety and Integrity (ASIL B)

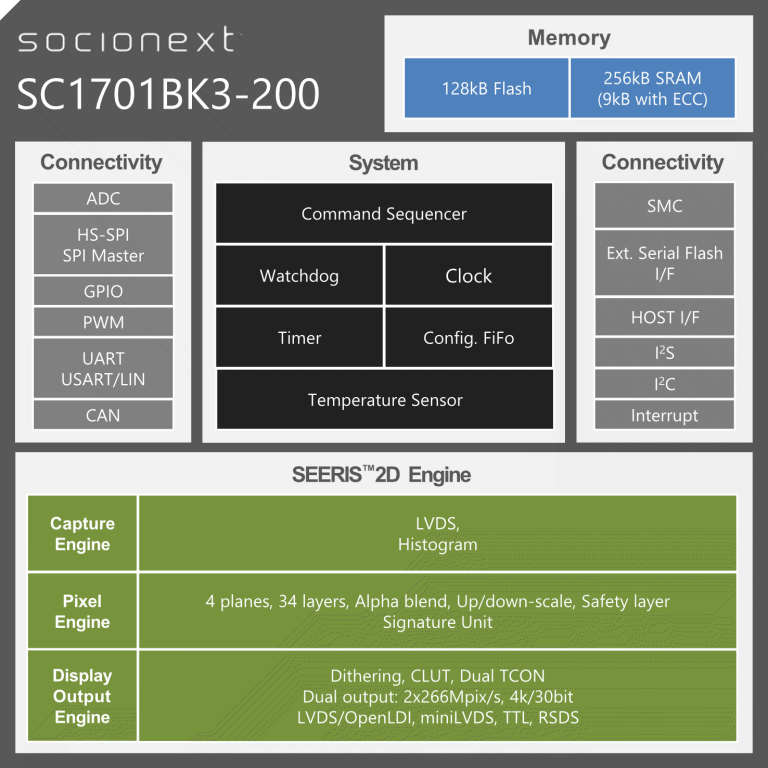

Block Diagram

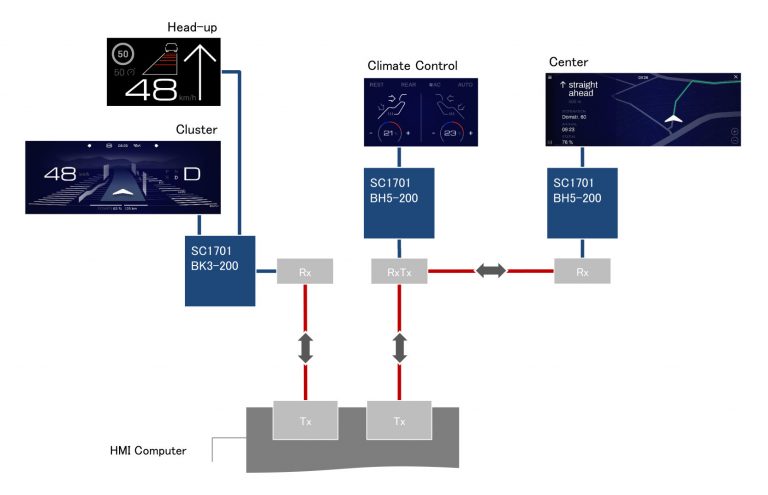

Application Example

Source: Socionext Inc.Factsheet GDC SC1711AH5 Series – SC1701BK3 Series – SC1701BH5 Series (v017)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• 2k Resolution (1920 x 1200 @ 60Hz / 30bpp)

• Socionext SEERIS™ 2D Graphics Engine

• Display Controller and TCON integrated

• Signature Unit and Safety layer

• Display Output Interfaces (OpenLDI, miniLVDS, RSDS, TTL)

• Touch Controller connectivity and Audio Generator

• Wide range of peripherals for external connectivity

• Spread Spectrum Modulation to reduce EMI

• AEC-Q100 qualification

• Support for Automotive Safety and Integrity (ASIL B)

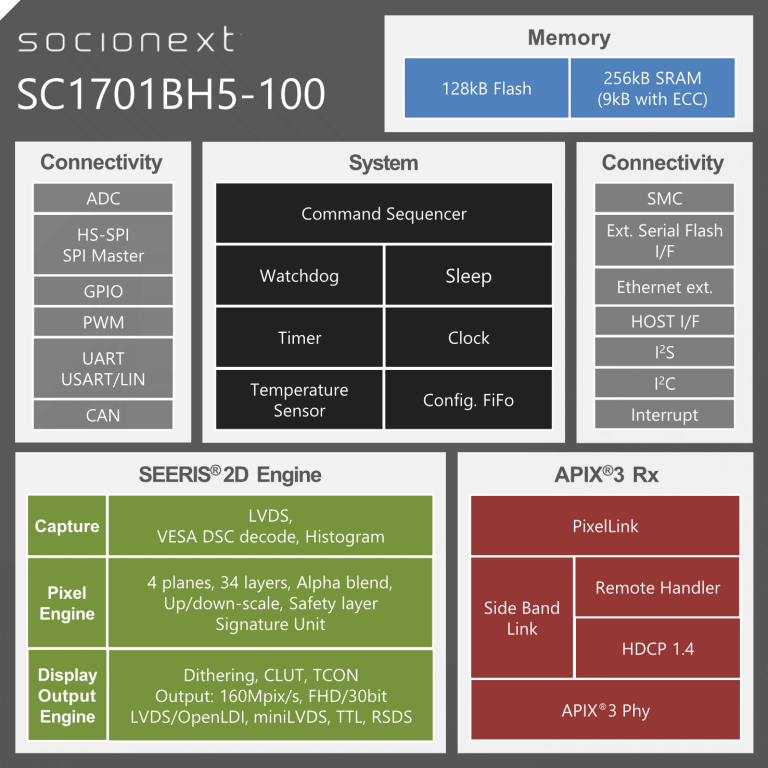

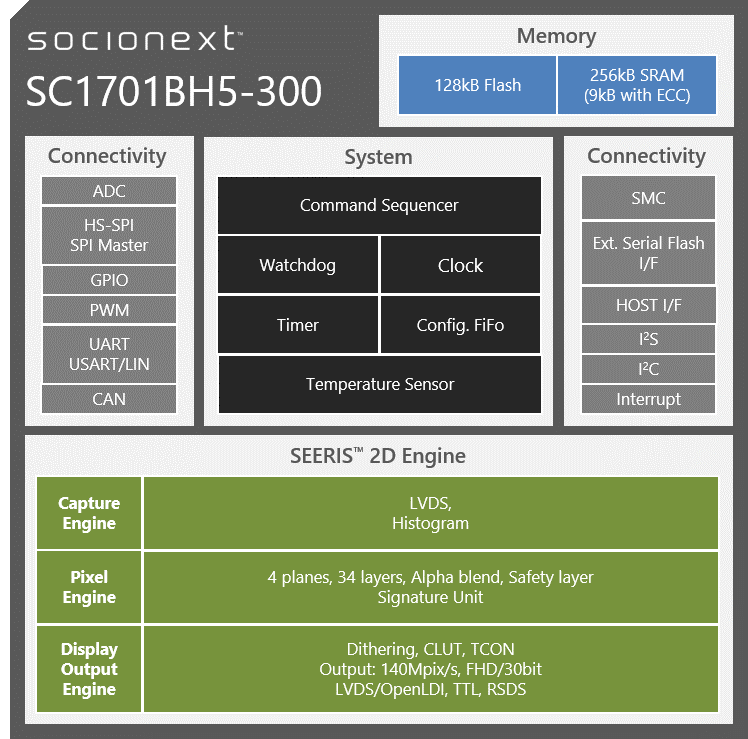

Block Diagram

Application Example

Source: Socionext Inc.Factsheet GDC SC1711AH5 Series – SC1701BK3 Series – SC1701BH5 Series (v017)

Any questions, don’t hesitate to contact us via info@eu.kagafei.com or via our inquiry page.

Key Features

• 2k Resolution (1920 x 1080 @ 60Hz / 30bpp)

• Socionext SEERIS™ 2D Graphics Engine

• Display Controller and TCON integrated

• Signature Unit and Safety layer

• Display Output Interfaces (OpenLDI, RSDS, TTL)

• Touch Controller connectivity and Audio Generator

• Wide range of peripherals for external connectivity

• Spread Spectrum Modulation to reduce EMI

• AEC-Q100 qualification

• Support for Automotive Safety and Integrity (ASIL B)

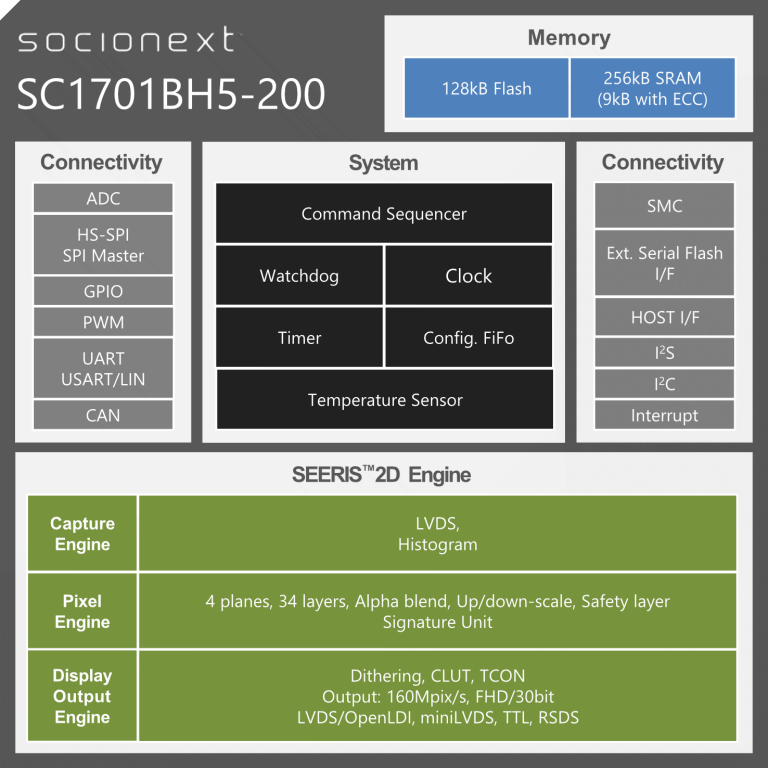

Block Diagram

Application Example

Source: Socionext Inc.Factsheet GDC SC1711AH5 Series – SC1701BK3 Series – SC1701BH5 Series (v017)
